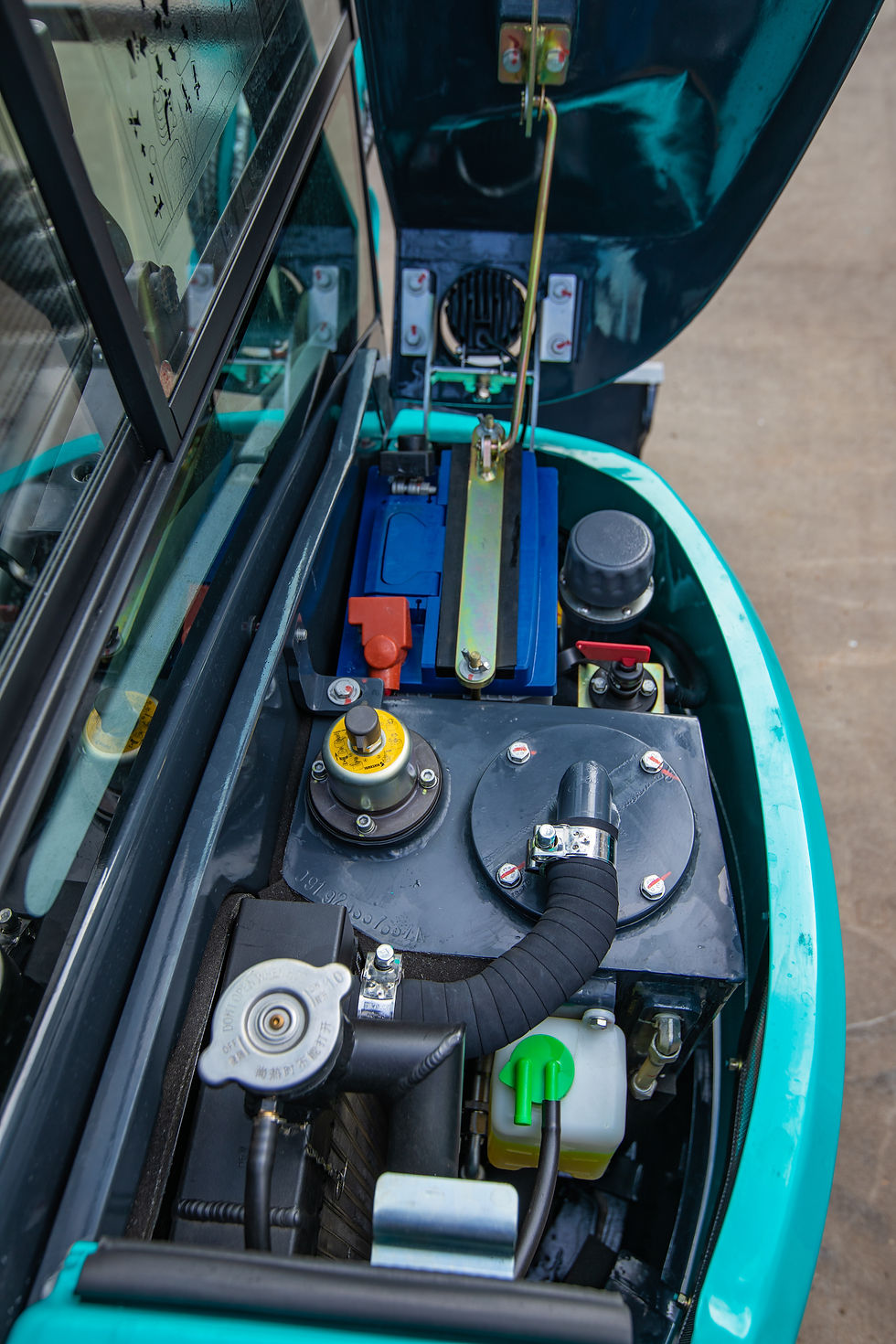

Sunward SWE25UF Mini Excavator

Section

Parameter

Value / Specification

Main Machine Performance

Dimension (L×W×H)

4,150 x 1,500 x 2,510 mm

Overall weight (With rubber track)

2.75 t

Overall weight (With steel track)

—

Standard bucket capacity

$0.08 \text{ m}^3$

Bucket digging force

24 kN

Arm digging force

14 kN

Max. drawbar pull

21.5 kN

Travel speed (Max/Min)

4.4 / 2.6 km/h

Gradeability

57%

Ground pressure

27 kPa

Slewing speed

9 rpm

Engine

Brand

KUBOTA

Model

D1105 (Euro V / US IV)

Max. torque

71.4 N·m / 1,600 rpm

Displacement

1.123 L

Power / Rotation speed

15.4 kW / 2,400 rpm

Fuel tank capacity

26 L

Hydraulic System (Option 1)

Type (Primary pump)

2 Variable plunger pumps, 1 gear pump

Flow rate

2 x 28.8 + 19.2 L/min

Pressure of main relief valve

2 x 23.5 + 19 MPa

Hydraulic System (Option 2)

Type (Primary pump)

1 Variable plunger pump

Flow rate

77 L/min

Pressure of main relief valve

24.5 MPa

Hydraulic oil tank capacity

24 L

Section

Parameter

Value / Specification

Dimensions

A. Overall Length

4,150 mm

B. Overall Height

2,510 mm

C. Overall Width

1,500 mm

D. Counterweight Clearance

570 mm

E. Ground Clearance

325 mm

F. Tail Swing Radius

765 mm

G. Length to Center of Rollers

1,560 mm

H. Track Length

1,990 mm

I. Track Gauge

1,200 mm

J. Track Width

1,500 mm

K. Track Shoe Width

300 mm

L. Max. Height of Cab

2,510 mm

M. Uppercarriage Width

1,450 mm
