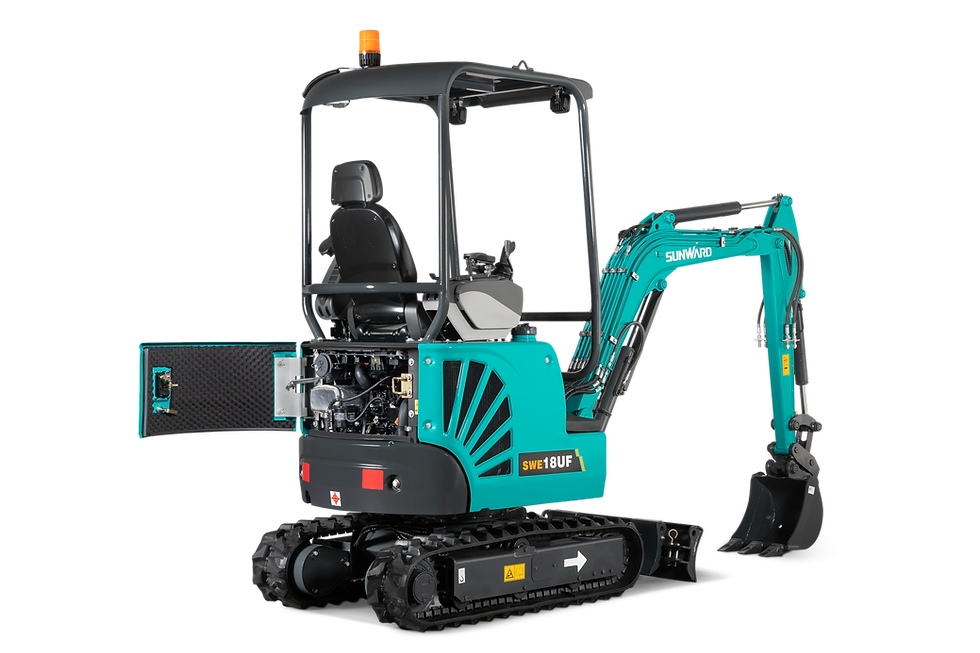

Sunward SWE 18UF Mini Excavator

Section

Parameter

Value / Specification

General / Dimensions

Dimension (L×W×H)

3,580 x 990 / 1,360 x 2,400 mm

Overall weight (With rubber track)

1.88 t

Overall weight (With steel track)

—

Standard bucket capacity

$0.04 \text{ m}^3$

Bucket digging force

22.7 kN

Arm digging force

9.8 kN

Max. drawbar pull

19.2 kN

Travel speed (Max/Min)

4.4 / 2.3 km/h

Gradeability

57%

Ground pressure

30.3 kPa

Slewing speed

10 rpm

Hydraulic System

Primary pump Type

1 variable plunger pump

Flow rate

62 L/min

Pressure of main relief valve

24.5 MPa

Hydraulic oil tank capacity

18.6 L

Section

Parameter

Value / Specification

Engine Option 1

Brand

YANMAR

Model

3TNV80-SSU (Euro V)

Max. torque

67.4 N·m / 1,600 rpm

Displacement

1.267 L

Power / Rotation speed

13.4 kW / 2,200 rpm

Engine Option 2

Brand

KUBOTA

Model

D1105 (Euro V)

Max. torque

71.4 N·m / 1,600 rpm

Displacement

1.123 L

Power / Rotation speed

14 kW / 2,200 rpm

Capacities

Fuel tank capacity

24.6 L

Section

Parameter

Value / Specification

Working Range

Boom length

1,800 mm

Arm length

1,150 mm

a. Max. digging height

3,640 mm

b. Max. dumping height

2,560 mm

c. Max. digging depth

2,390 mm

d. Max. vertical digging depth

1,860 mm

e. Max. digging reach

4,160 mm

f. Max. digging reach at ground level

4,060 mm

g. Max. lift height of the dozer blade

240 mm

h. Max. digging depth of dozer blade

290 mm

r. Min. swing radius

1,760 mm
