Detailed description

RP-200 PROFESSIONAL roller chopper is designed for cutting branches with a diameter of up to 16 cm, completely designed and developed by REMET CNC TECHNOLOGY. The frame is made of metal sections of wide spacing of support, expandable extended inlet hopper of high rigidity and reinforced with a section. The chopper is fitted with safety switch around the inlet hopper (safety switch should be connected with emergency module in the tractor).  Cutting mechanisms manufactured precisely on CNC machining centre from one assumption to provide proper quality, accuracy and axis alignment which translates into long service life of sub-assemblies and the entire device. The mechanism is fitted with an expanding and clamping sleeve which serves for the positioning of cutting blades, and also performs a function of overload protection. The chopper may be fitted with a flywheel/pulley and expandable belt conveyor, thanks to which chopper operation becomes more effective and much more comfortable.

Chopper’s drive is transmitted by power transmission shaft from tractor’s WOM (right-hand rotation) We recommend using power transmission shafts fitted with a with shear pin coupling (available in our offer), in the case of machine overload the pin is sheared thus switching off the drive.

Processed wood is an effective and organic fuel, ideally suited for burning in all types of central heating furnaces.

Blades of cutting mechanism are made of HARDOX abrasion resistant steel guaranteeing long and effective operation of the machine.



Specification

  • reinforced welded construction (fully dismountable)
  • additional rear roller for flywheel/pulley
  • adjustable clearance between cutters
  • induction hardened gear wheels
  • extended, reinforced with a profile fold-out hopper with a safety switch
  • reinforced frame made of metal profiles
  • ball and bolt coupling for a trailer
  • three-point tractor attachment system

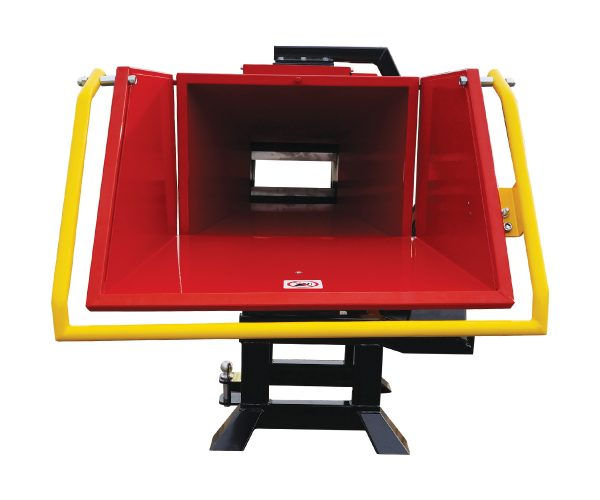

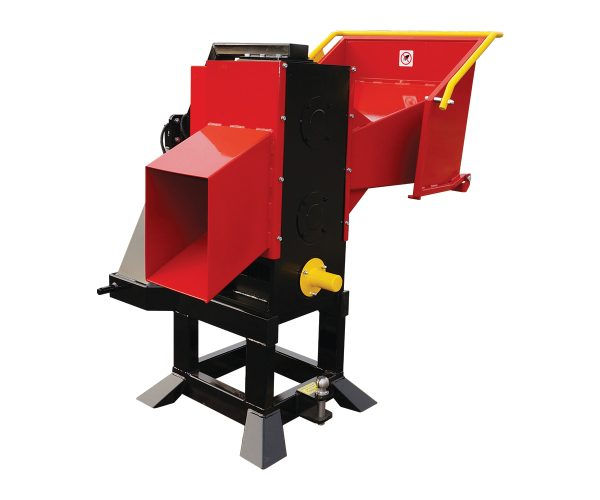

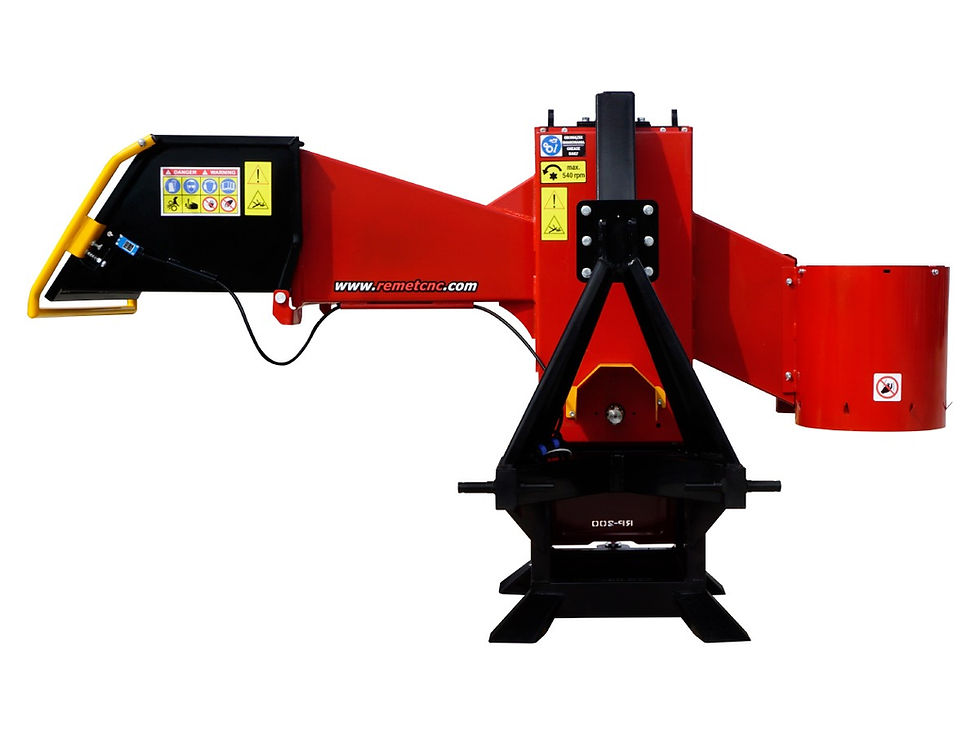

Remet RP200 Branchlogger

€4,500.00Price
  • Minimum/recommended power

    90 / 150 km

    Number of cutters

    6

    Recommended WOM drive speed

    about 540 rpm

    Direction of rotation of the WOM roller

    Clockwise

    Max. cutting diameter of branches

    dry hard wood 140 mm
    fresh hard wood 150 mm
    fresh soft wood 160 mm

    Length of cutting of chips

    6 blades 18-30 cm
    8 blades 15-25 cm

    Maximum efficiency

    18 m3/h

    The internal width of the cutting mechanism

    300 mm

    Manufacturing of cutters

    HARDOX steel type 500

    Thickness of cutters

    15 mm

    Diameter of gears (induction hardened)

    340 mm

    Hopper (dimensions)

    620/380 mm

    Chipper attachment system

    Three-point suspension system

    Trailer attachment: towing power

    1000 kg

    Weight

    460 kg

    Overload protection

    REQUIRED POWER SHAFT WITH A PROTECTION COUPLER 1700-2700 Nm (articulated telescopic shaft)

    Emergency switch

    Can be connected to the emergency stop module of the PTO drive in the tractor

    Shaft for the flywheel

    Ø45mm
