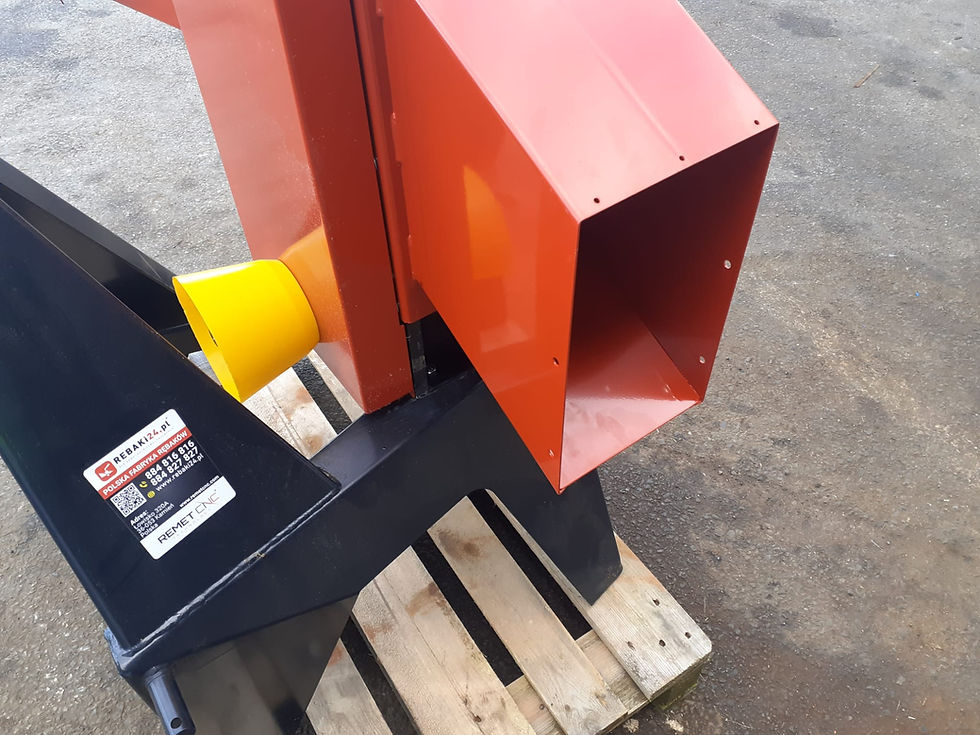

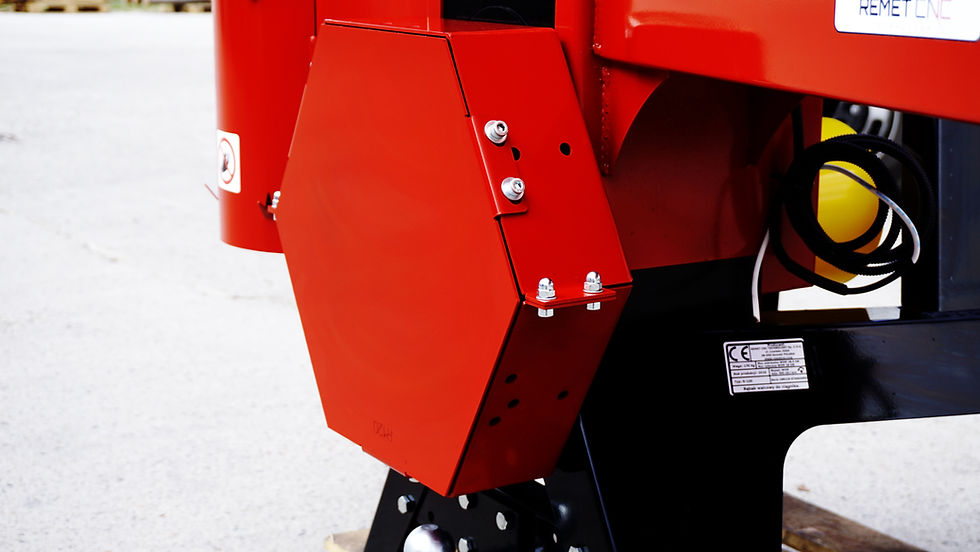

Remet R150 Branchlogger
Details:
Detailed description
R-150 PROFESSIONAL is designed for cutting branches up to a diameter of up to 4"/11 cm approx, The Branchlogger is fitted with safety switch around the inlet hopper (safety switch should be connected with emergency module in the tractor).

Branchlogger drive is transmitted by power transmission shaft from tractor’s PTO (right-hand rotation) We recommend using power transmission shafts fitted with a  shear pin coupling, in the case of machine overload the pin shears to protect the tractor drive shaft from, lodgements, strong knots or miscalcation of diameter.

Blades of cutting mechanism are made of HARDOX abrasion resistant steel guaranteeing long and effective operation of the machine.

Flywheels are availiable to be fitted or purchased later on. Flywheel's are used to balance power out-put and give even greater momentum, protection to both machine and tractor.



Remet R150 Branchlogger

€3,300.00Price
  • Horsepower

     80HP
    Number of cutters

    6
    PTO Speed

    540RPM Recommended
    PTO Rotation

    Clockwise
     Cutting Diameter

    4"/11cm Softwood  3"/7cm Hardwood
    Length of cutting of chips

    5"/14cm-8"/22 cm

    Maximum

    efficiency

    14 m3/h

    The internal

    width of the

    cutting

    mechanism

    220 mm
    Manufacturing of cutters

    HARDOX steel type 500
    Thickness of cutters

    12 mm
    Diameter of gears (induction hardened)

    280 mm

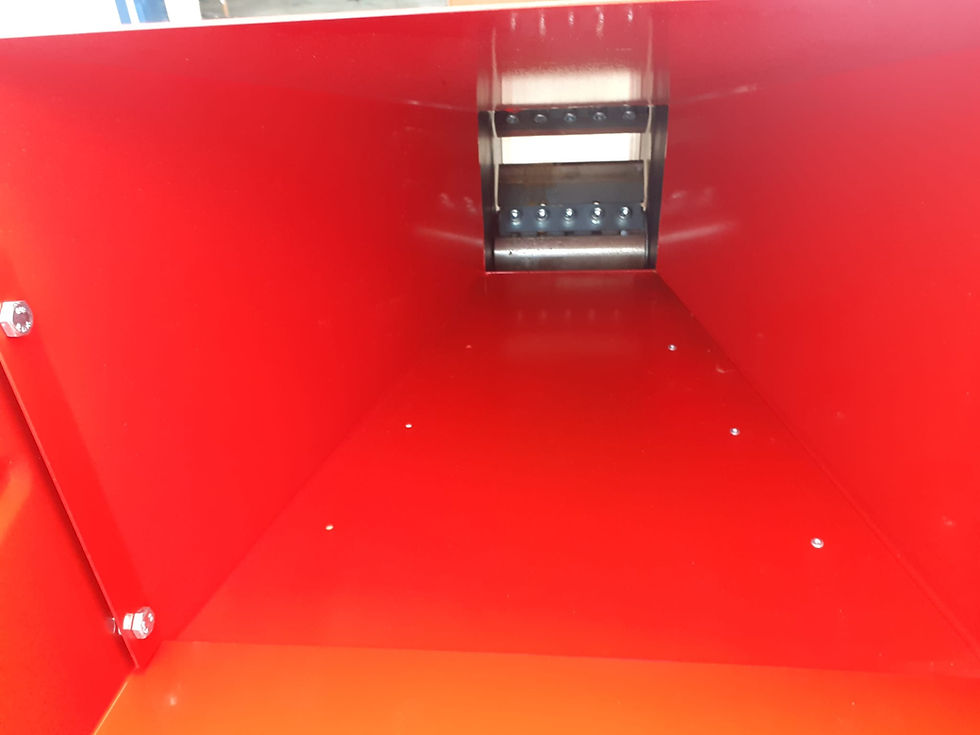

    Hopper (dimensions)

    620/380 mm
    Hitch

    Three-point suspension system
    Trailer attachment: towing power

    1000 kg
    Weight

    320 kg
    PTO Shaft

    Shear Pin T6 PTO
    Emergency switch

    Can be connected to the emergency stop module of the PTO drive in the tractor
    Shaft for the flywheel

    Ø45mm
