Details:



RP-150 PROFESSIONAL  is designed for cutting branches with a diameter of up to 4"/11 cm approx, . The Branchlogger is fitted with safety switch around the inlet hopper (safety switch should be connected with emergency module in the tractor).



Branchlogger's drive is transmitted by power transmission shaft from tractor’s PTO (right-hand rotation) We recommend using power transmission shafts fitted with a with shear pin coupling , which protect the tractor drive shaft from, lodgements, strong knots and miscalculations in diameter.



Blades of cutting mechanism are made of HARDOX abrasion resistant steel guaranteeing long and effective operation of the machine.



Flywheels are availiable to be fitted or purchased later on. Flywheel's are used to balance power out-put and give even greater momentum, protection to both machine and tractor.

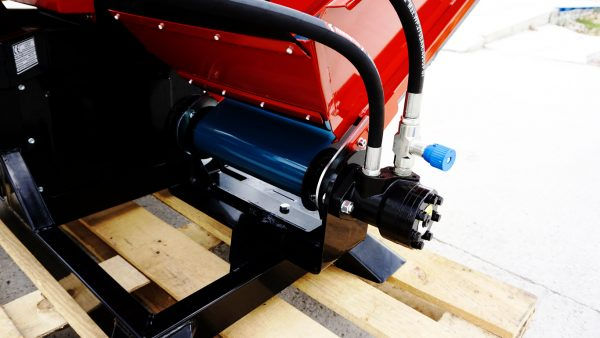

Remet R150 Branchlogger with conveyor

€4,900.00Price
  • Horsepower

    80 HP

    Number of cutters

    6

    Recommended

    PTO speed

    about 540 rpm Reccomended

    PTO Rotation

    Clockwise

    Diameter of

    branches

    3"/8cm Hardwood   4"/11cm Softwood

    Length of cutting



    6 blades 7"/17-8"/22 cm


    Maximum

    efficiency

    14 m3/h

    The internal width of the cutting mechanism

    22 cm

    Manufacturing of cutters

    HARDOX steel type 500

    Thickness of cutters

    1.2 cm

    Diameter of gears (induction hardened)

    28 cm

    Hopper width

    62/38 cm

    Hitch

    Three-point suspension system

    Trailer attachment: towing power

    1000 kg

    Weight

    320 kg

    PTO Shaft

    T6 Shearpin PTO

    Emergency switch

    Can be connected to the emergency stop module of the PTO drive in the tractor

    Shaft for the flywheel

    Ø4.5cm

    VAT                                      Included in all Pricing
